Framing
Framing carries the entire load of a structure, transferring weight from the roof down through the walls and into the foundation. Every window, door, and finish surface depends on it. When the skeleton of a building is straight, square, and properly fastened, everything that follows fits the way it should. When it is not, problems surface for years afterward. At Southern Roofing and Restoration, framing sits at the core of both new construction and restoration work, and we treat it with the precision that a load-bearing system demands.
What Framing Actually Involves
Framing is the assembly of the structural members that give a building its shape and strength. This includes sill plates, studs, headers, joists, rafters, and sheathing. Each element has a job. Studs carry vertical loads and define wall cavities. Headers span openings and redirect the weight above windows and doors to the studs on either side. Joists support floors and ceilings, while rafters or engineered trusses form the roof plane.
We work with dimensional lumber, engineered wood products such as laminated veneer lumber and I-joists, and steel where a project calls for it. Species and grade matter. Southern yellow pine, for example, offers high bending strength that suits floor systems, while spruce-pine-fir is common for wall framing. Selecting the right material for each application prevents deflection, squeaks, and long-term sag.
How We Build a Frame
A framing job moves in a deliberate order. We start by confirming the layout against the plans and the foundation, checking that the concrete is level and the anchor bolts land where they should. From there the sequence builds upward, each stage inspected before the next begins.
- Layout and plating: We mark stud positions on the plates at sixteen or twenty-four inches on center, depending on the load and code, so sheathing and drywall break on solid backing.
- Wall assembly: Walls are built flat, squared with diagonal measurements, then raised and braced plumb before being fastened to the deck.
- Floor and ceiling systems: Joists are set, blocked, and sheathed to create a rigid diaphragm that resists lateral movement.

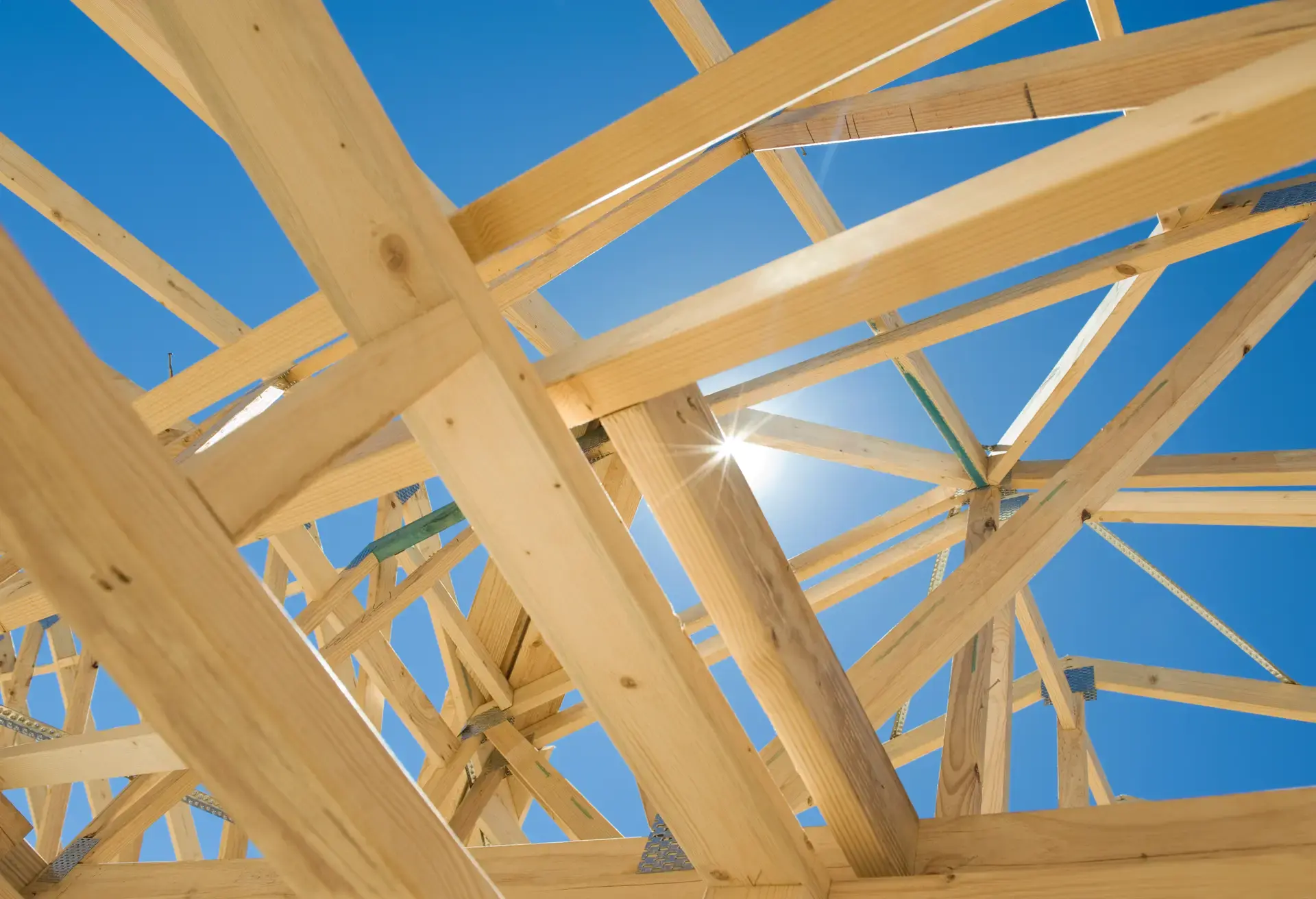

- Roof structure: Rafters or trusses are set to the correct pitch, tied together, and sheathed to prepare for underlayment.
- Fastening and connectors: Hurricane ties, hold-downs, and structural screws lock the assembly together against wind uplift and seismic force.
Throughout the process we verify that everything stays level, plumb, and square. A quarter-inch error at the base multiplies as the building rises, so catching it early saves hours of correction later.
Technical Details That Separate Good Framing From Bad
Nailing patterns are not arbitrary. Sheathing edges call for closer spacing than the field, and shear walls require a specific schedule to hit their rated capacity. We follow fastener specifications precisely because a shear wall nailed incorrectly loses much of its ability to resist lateral loads. Header sizing follows span tables tied to the load above and the width of the opening. A header that is undersized will bow, and one that is oversized wastes material and cuts into insulation space.
Moisture control also begins at the framing stage. We keep lumber off the ground, allow for proper drying, and detail flashing transitions so that later trades can build on a dry, stable base. Our crews hold GAF Master Elite credentials on the roofing side, which means the framing beneath the roof deck is prepared to the standard those systems require.
Where Framing Work Comes Into Play
Restoration after storm damage often exposes compromised framing. When water intrudes through a failed roof or a broken window, rot can weaken rafters and top plates. We remove the damaged members, sister in new lumber, and restore the original strength. Room additions call for tying new framing into an existing structure without disrupting the load path already in place, which takes careful planning at the connection points.
Renovations that move walls or enlarge openings require temporary shoring, new headers, and often a beam to carry loads that a removed wall once held. We also frame for dormers, porches, and structural repairs where settling or insect damage has undermined the original build. Across Union Hall, Penhook, North Shore, Westlake Corner, Moneta, Hardy, & Wirtz, VA, these situations show up regularly, and each one rewards a methodical approach.
Getting Started
Good framing is the difference between a building that performs for decades and one that develops problems within a few years. Southern Roofing and Restoration brings hands-on experience to every stud and joist, and we offer free estimates with no conditions attached. If you have a project that starts with the frame or a repair that reaches into it, reach out and we will walk the scope with you.
